Panel Light IP65

LED PANEL LIGHT IP65

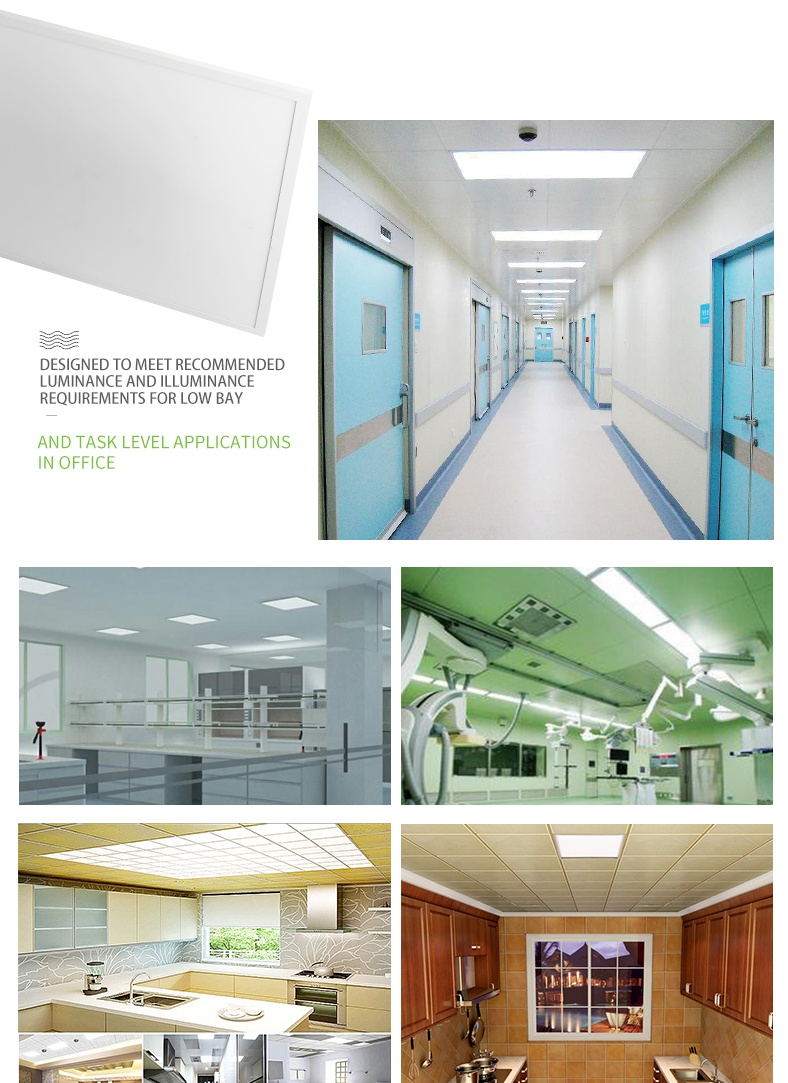

In applications where hygiene is crucially important, such as hospitals and foodproduction facilities, customers want proven IP65- and IP54-rated luminaires that are safe to use and come at an attractive price.

This family of fixtures represents true value for money:  LED IP65 panel light delivers reliable, high-quality light, and the flexible mounting possibilities mean that this family can be used in a wide range of applications.

The fixtures are also compliant with all relevant standards (CE,RoHS).

Share
Description

Features:

Panel Light IP65Panel Light IP65

Overview



Overview

Quick Details

Lighting solutions service:  Lighting and circuitry design                                                                                    Place of Origin:  China

Product name: Structrul waterproof for none-dustry factory LED IP65 panel light                                         Warranty(Year): 1-Year

Installation: Reccessed/suspended/surface mounted                                                                                        Warranty: 5Year

Size: 595*595*11mm                                                                                                                                                 CCT: 2700K~6500K

Voltage: 220-240v                                                                                                                                                       Shape: Square Shape

Material: Almiunum                                                                                                                                                    PF: 0.9

Application: Cleanroom




Specifications


Luminous Efficiency
Stand 100LM/W up to 120LM/W
Input Voltage
AC 220V-240V,50/60Hz
Operating Temp./Storage Temp.
-20℃to 45℃/-40℃to 80℃
CRI
>80
UGR
<22/<19
PF
>0.9
THD
<15%
IP Rating
IP65 @ TUV test
Housing Material
Aluminium
Beam angle
120°
Out Put Power
4000lm@4000K CRI80 40W




Panel Light IP65

Panel Light IP65

Panel Light IP65



REFERENCE
Size
Lumen
Power
Efficiency
ES-595*595-40W-W2-PMMA-IP65
595*595*11mm
4000lm
40W
100lm/W
ES-295*1195-40W-W2-PMMA-IP65
295*1195*11mm
4000lm
40W
100lm/W
ES-620*620-40W-W2-PMMA-IP65
620*620*11mm
4000lm
40W
100lm/W
3000K and 6000K, 85-265V, 295*295 and 595*595 under request.
